Baseline is done to create a backup of the BOQ before making a change or revision.
To create a baseline
1.On the tool bar click Baseline.
2.On the menu displayed click Create Baseline.

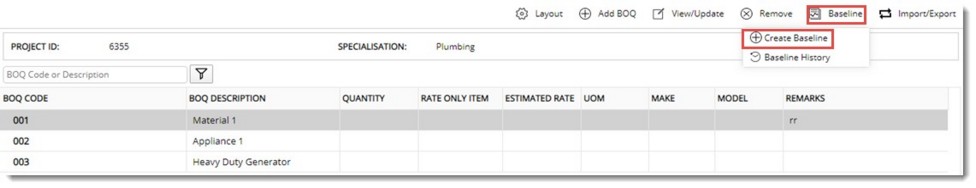

Figure: Creating a baseline
Baseline Details window is displayed.

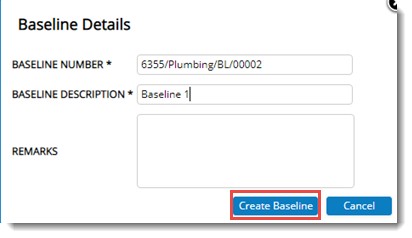

Figure: Baseline Details window
3.Enter a BASELINE DESCRIPTION and REMARKS.
4.Click Create Baseline. Baseline created successfully message is displayed.
To view baseline history
1.On the tool bar click Baseline.
2.On the menu displayed click Create Baseline.

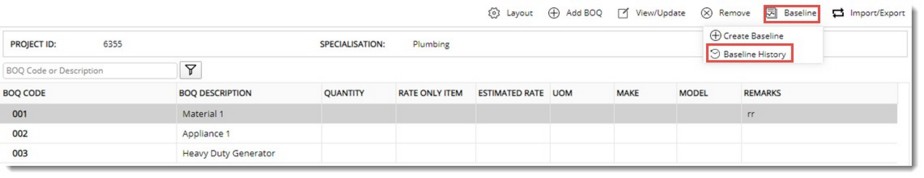

Figure: Viewing Baseline history
BOQ Baseline History window is displayed. Baselines will be displayed in the window with latest on the top.

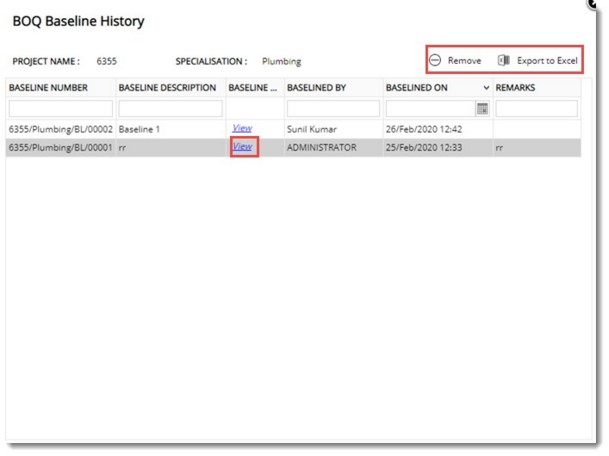

Figure: BOQ Baseline History window
3.Click the hyperlink View to view the baseline details against any previous baseline which is created. Baseline details window is displayed.

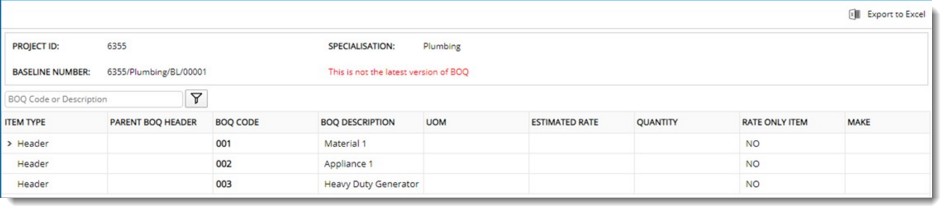

Figure: Baseline Details window
For old baselines, an information text, This is not the latest Revision of BOQ is displayed in red font.
To remove a baseline
1.Select the base line that is to be removed and On the tool bar click Remove.
A message Do you want to remove the selected Baseline is displayed.
2.Click Yes. Baseline Details removed successfully message is displayed.
The selected baseline is removed from the window.
To export baseline details
1.Select the baseline that is to be exported.
2.On the tool bar click Export to Excel. Baseline Details exported successfully message is displayed and excel file is opened with the exported baseline details.

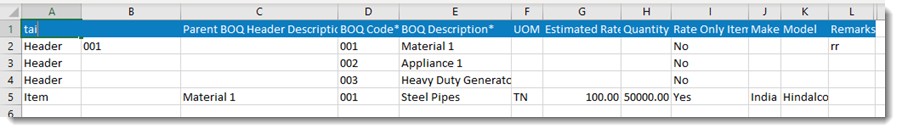

Figure: Exported baseline details
|
